V-ribbed belt

Update time：2020-03-23 16:35:44Hits：718Font size：T|T

Introduction

V-ribbed belt (neoprene, polyurethane)
Overview of V-ribbed belts:

Multi-ribbed belts (multi-groove belts and multi-groove belts) refer to endless rubber transmission belts with flat belts as the base and equally spaced longitudinal trapezoidal wedges arranged on the inner surface.

The contact area and friction between the V-ribbed belt and the pulley are large, and the load is evenly distributed along the bandwidth, so the transmission capacity is greater; because the belt is thin and light, has good flexibility and reasonable structure, the working stress is small, and Small belt wheels work; Poly-V-belts also have the characteristics of low transmission vibration, fast heat dissipation, smooth operation, low elongation, large transmission ratio, and high limit linear speed, so they have a longer life; obvious energy saving effects and high transmission efficiency; Compact and small footprint. In addition, the back of the V-ribbed belt can also be driven, and an automatic tension adjuster can be used to make the transmission safer and more reliable. V-ribbed belt is especially suitable for high-speed transmission with compact structure and high transmission power.

Features of V-ribbed belt:
1. The transmission power is large. When the space is the same, the transmission power is 30% higher than that of the ordinary V-belt.
2. The transmission system has a compact structure. At the same transmission power, the space occupied by the transmission device is 25% smaller than that of an ordinary V-belt.
3． The belt is thin and full of flexibility. It is suitable for transmission with a small diameter of the pulley and also for high-speed transmission. The belt speed can reach 40m / s; the vibration is small, the heat is small, and the operation is stable.
4． Heat resistance, oil resistance, wear resistance, small elongation and long life.
The company's rubber V-ribbed belt and polyurethane V-ribbed belt products are imported from foreign advanced technology and production equipment. The main raw materials of the product (such as skeleton materials, rubber, etc.) are sourced from leading foreign professional production companies. The products have passed the national technical appraisal and won the title of national key new products. The product quality has reached the advanced level of similar foreign products.

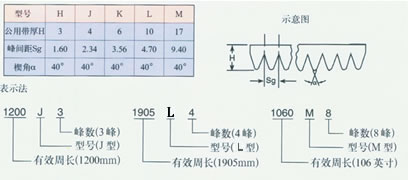

Models of V-ribbed belt: H-type, J-type, K-type, L-type, M-type

多楔带规格型号尺寸表

聚氨酯 K 型	型号×节线长×峰数	型号×节线长×峰数	氯丁橡胶 M 型
型号×节线长×峰数	J×737×51	L×1803×24	型号×节线长×峰数
K×170×36	J×750×60	L×1809×38	M×1500×28
K×260×50	J×760×61	L×1880×40	M×1550×28
K×300×50	J×800×55	L×1900×25	M×1600×28
K×310×50	J×813×52	L×1971×24	M×1650×28
K×354×50	J×830×51	L×2136×23	M×1700×28
K×360×50	J×850×56	L×2250×38	M×1750×28
K×392×36	J×870×51	L×2500×25	M×1800×28
K×414×50	J×900×48	L×2580×52	M×1850×28
K×420×50	J×930×78	L×2750×27	M×1900×28
K×440×50	J×950×51	L×2895×26	M×1950×28
K×495×50	J×974×84	L×2997×26	M×2000×28
K×500×60	J×1000×90	L×3200×21	M×2100×28
K×630×98	J×1016×50	L×3210×58	M×2200×28
K×750×98	J×1050×56	L×3254×30	M×2300×28
K×810×95	J×1090×55	L×3950×36	M×2400×28
K×950×92	J×1092×51		M×2500×28
	J×1151×56	聚氨酯 M 型	M×2600×28
	J×1168×51	型号×节线长×峰数	M×2700×28
	J×1250×63	M×2780×12	M×2800×28
聚氨酯 J 型	J×1092×52		M×2900×28
型号×节线长×峰数	J×1270×80	氯丁橡胶 L 型	M×3000×40
J×213×31	J×1290×68	型号×节线长×峰数	M×3100×40
J×216×36	J×1320×51	L×1320×36	M×3200×40
J×230×26	J×1307×56	L×1372×34	M×3300×40
J×235×30	J×1400×51	L×1450×34	M×3400×40
J×245×30	J×1473×40	L×1500×36	M×3500×40
J×251×42	J×1550×55	L×1640×36	M×3600×40
J×256×34	J×1600×62	L×1772×36	M×3700×40
J×257×30	J×1650×60	L×1803×24	M×3800×40
J×280×20	J×1720×55	L×1809×36	M×3900×40
J×330×34	J×1727×62	L×1880×36	M×4000×40
J×340×34	J×1753×40	L×1900×36	M×4100×40
J×345×51	J×1770×40	L×1971×36	M×4200×40
J×355×51	J×2000×77	L×2136×36	M×4300×40
J×385×20	J×2400×40	L×2250×36	M×4400×40
J×400×26		L×2500×36	M×4500×40
J×433×48	聚氨酯 L 型	L×2580×36	M×4600×40
J×450×49	型号×节线长×峰数	L×2750×36	M×4700×40
J×465×30	L×630×21	L×2895×24	M×4800×40
J×470×30	L×665×32	L×2997×24	M×4900×40
J×480×32	L×720×32	L×3200×24	M×5000×56
J×500×51	L×900×21	L×3210×36	M×5500×56
J×530×34	L×990×30	L×3254×36	M×6000×56
J×550×51	L×1024×31	L×3950×36	M×6500×56
J×570×51	L×1250×28	L×4000×36	M×7000×56
J×600×56	L×1272×20	L×4050×36	M×7500×56
J×620×60	L×1320×40	L×4100×36	M×8000×56
J×640×51	L×1372×29	L×4150×36	M×8500×56
J×650×51	L×1450×31	L×4200×36	M×9000×56
J×670×54	L×1500×35	L×4250×36	M×9500×56
J×680×58	L×1640×26	L×4300×36	M×9900×56
J×690×51	L×1772×25	可生产任意长	特殊规格均可生产
